Script structure and conditional checks

1. The scripts which are running in GTA are called THREAD
2. They are defined in the main.scm as thread with the create_thread command or a mission script as mission
   As well the Extern scripts of script.img are also threads.
3. The cleo programm checks if there is a .CS file in the Cleo folder
   and if yes, it start this script as thread



---



4. Script structur / short version

5. At first, the head, it beginns with the Cleo directive

{$CLEO .cs}

6. First Label (adress)

:Akt

7. Then give the thread a name

03A4: name_thread 'AKT'

8. now put a code inthere which will doing something and then end_custom_thread as last code
   its ready then to test it ingame

{$CLEO .cs}
:Akt
03A4: name_thread 'AKT'
08B2: toggle_thermal_vision 1
0A93: end_custom_thread

9. Script above activates the Infrarot view unless in cutscenes
   The script ends then, will be deactivated because it ends with opcode 0A93: end_custom_thread
   The script will be started by each loading of savegame or by start new game



Next step / using conditional checks

10. A conditional check requires minimum 3 opcodes
11. 1. the IF-variation details about IF-Variation, see below
12. 2. the real question
13. 3. the jump instruction by negation


    1. if

    2. 0AB0: key_pressed 8

    3. 004D: jump_if_false @akt_01

14. We use the previous script again but now we wonna be able to switch into normal view
15. Therefore we use a conditional check and build a "LOOP"
    Loop means that a jump instruction can send the reading process to a previous adress
    I call such an adress "Loop-adress"



16. Important:
17. The first opcode after such a Loop-adress must be the wait opcode
18. mostly wait 0 millisecond



19. the jump instruction can be a jump instruction by negation
20. or also a normal jump instruction

004D: jump_if_false @akt_01



21. The conditional check of a key press in the script below should be passed by pressing BACKSPACE

{$CLEO .cs}
:Akt
03A4: name_thread 'AKT'
08B2: toggle_thermal_vision 1

:Akt_01//----------------------------Loop Adresse
0001: wait 0 ms
if
0AB0:   key_pressed 8
004D: jump_if_false @Akt_01//--------Sprunganweisung bei Verneinung
08B2: toggle_thermal_vision 0
0A93: end_custom_thread

22. Script above activates the Infrarot view and toggle back to normal view by key_press
    1. The reading process is looping as long as BACKSPACE is not pressed
       the jump instruction by negation sends the reading process allways to the label :Akt_01
       1000 times per second

---

Next Step/ Script structure simple

The previous scripts ended because of the opcode 0A93: end_custom_thread
Instead let the script ending we use a jump instruction at script end to the 1.Loop adress
So the reading process is permanent looping

0002: jump @Akt_01

And since now we add a check in our loop which we add allways after a Loop adress.

23. It is:

if
0256:   player $PLAYER_CHAR defined
004D: jump_if_false @Akt_01

24. It should prevent crashes if the player dies or gets arrested
    The "IF Player- Defined-check" should allway be the first check in a loop
    Script structure simple with 1 Loop:
25. - Script head
26. - 1.Loop-Adress
27. - wait code
28. - IF player_defined-check
29. - Conditional Check
30. - Event
31. - Normal jump instruction to 1.LoopAdress

{$CLEO .cs}
:Akt
03A4: name_thread 'AKT'

:Akt_01
0001: wait 0 ms
if
0256: player $PLAYER_CHAR defined
004D: jump_if_false @Akt_01
if
0AB0:   key_pressed 8//-----------------key = Backspace
004D: jump_if_false @Akt_01
08B2: toggle_thermal_vision 1
0001: wait 3000 ms
08B2: toggle_thermal_vision 0
0002: jump @Akt_01//--------Normal jump instruction to 1.LoopAdress

32. Script above activates the Infrarot view after key_press
    and toggle back to normal view after 3 seconds



Next Step/ Script structure extended

To start an event with our script will change the game state and the conditions.
This needs to redirect the reading process to prevent that the same code will be read again.
Therefore we add a second Loop in the script
Loop 1 - before the event
Loop 2 - after the event

33. Script structure extended with 2 Loops:
34. - Script head
35. - 1.Loop-Adress
36. - wait code
37. - IF player_defined-check
38. - Conditional Check
39. - Event
40. - 2.Loop-Adress
41. - wait code
42. - IF player_defined-check
43. - Conditional Check
44. - Normal jump instruction to 1.LoopAdress

{$CLEO .cs}
:akt
03A4: name_thread 'AKT'

:akt01//----------------------------1.Loop Adress
0001: wait 0 ms
if
0256:   player $PLAYER_CHAR defined
004D: jump_if_false @akt01
if
00DF:   actor $PLAYER_ACTOR driving
004D: jump_if_false @akt01

03C0: 1@ = actor $PLAYER_ACTOR car
0229: set_car 1@ color_to 17 0
02AC: set_car 1@ immunities BP 1 FP 1 EP 1 CP 1 MP 1
053F: set_car 1@ tires_vulnerability 0


:akt03//----------------------------2.Loop Adress
0001: wait 0 ms
if
0256:   player $PLAYER_CHAR defined
004D: jump_if_false @akt03
if
80DF:   not actor $PLAYER_ACTOR driving
004D: jump_if_false @akt03

01C3: remove_references_to_car 1@

0002: jump @akt01//--------Normal jump instruction to 1.LoopAdress

The script above makes the player_car undestructable as soon as a car is entered
Therefore we must registrate the instance of the car and define it with a variable name
03C0: 1@ = actor $PLAYER_ACTOR car
Then we can use this variable name 1@ to make the car immun

After player has left the car, the reading process jumps back into the first Loop.

45. Youre not restricted by 2 Loops and there are also other kinds of script structure
46. But I recommand to build your scripts with this structure as long as you have not much experience

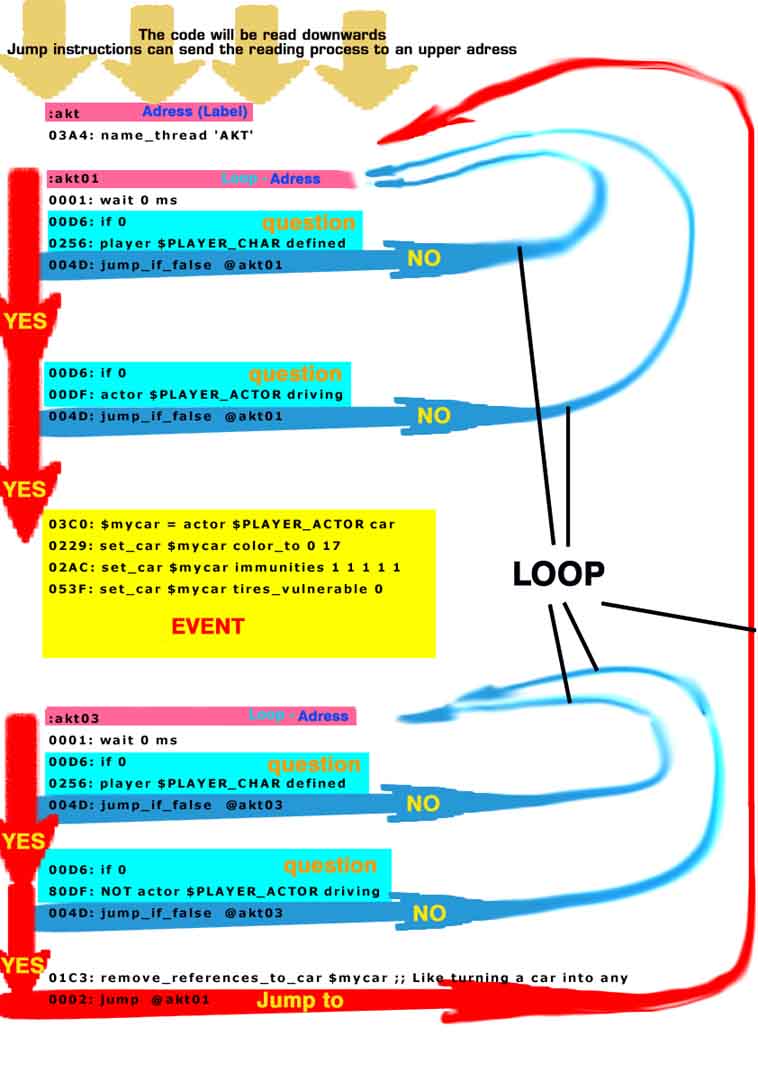

47. View picture to understand how a loop and conditional checks are executed
48. Example Scripts:
49. Screenshot
50. Slowmotion
51. First Person Camera

---



The IF - Variation

if
00FF:   actor $PLAYER_ACTOR  1 (in-sphere)near_point_on_foot 2493.5  -1682.5  13.35 radius  1.0  1.0  1.0
004D: jump_if_false @Teleport_2

By more than one question in an conditional check requires to determine,
if it means if or or if and

if and
00DF:   actor $PLAYER_ACTOR driving
8119:   NOT   car 0@ wrecked
004D: jump_if_false @AD_5

if or
00E1: key_pressed 0 0
00E1: key_pressed 0 1
00E1: key_pressed 0 14
00E1: key_pressed 0 18
004D: jump_if_false @AD_7

if or
8118:   NOT   actor 7@ dead
8118:   NOT   actor 8@ dead
004D: jump_if_false @AD_25
0002: jump @AD_12

1. maximum 7 condition in a conditional check are valid
2. The most question codes can be changed into the opposite question
3. exemble:

00E1: key_pressed 0 10

and

80E1: NOT key_pressed 0 11



---
